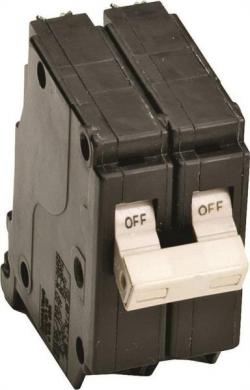

CH2100 2POLE 100AMP CIR BRKR Call for Price  Quantity Available: 1   Call for Price

Quick make, quick break switch, inverse time element tripping operation and trip free handle. Thermal-magnetic trip curve. #14 - 8 wire range 15 to 30 amp, #14 - 2 wire range 40 to 70 amp, #10 - 1/0 wire range 100 amp. UL Listed, HACR rated, meets NEMA standards and federal specifications, CSA certified. 120/240 volt. 10,000 AIR. 3/4" per pole.

- Plug-On - Double Pole
- Type CH - Common Trip
- Amp Rating : 100
- Fits into two 3/4 in spaces for CH-type load centers
- Safely trips to the off position
- Allows solid and stranded wire to be used together
- Meets UL489, CSA and NEMA standards

SKU: 76066476
Manufacturer: Eaton Corporation
Manufacturer Part #: CH2100
