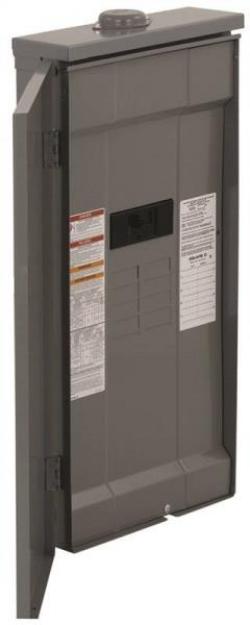

SQ D 200 AMP MAIN LOAD CENTER Call for Price  Quantity Available: 1   Call for Price

Single phase, 3-wire, insulated/bonded split neutral. 200 A, 8 spaces/16 circuits maximum. 120/240 VAC. 10,000 AIR. For mobile homes and farm applications. Overhead or underground feeds and offers feed-thru lugs. Plated aluminum bus bar. Has a 22,000 maximum short circuit current rating. Provided equipment: circuit breaker  2P 200 A 120/240 VAC main supply ready assembled and grounding bar  ready assembled. UL listed.

- Straight-in mains design helps reduce the need to bend service cable, cutting waste and saving installation time.
- Convertible mains let you meet changing job site requirements by field converting main breaker load centers to main lugs or vice versa.
- Optional high interrupting field installed main breakers increase short circuit current rating to 22,000/10,000 ampere.
- Interior is easily removed for paint or theft protection during rough-in. - Single, captive screw can't be lost; interior mounts quickly and easily. - Split branch neutral with up to 50% more terminations than required.
- Reduces clutter and simplifies wiring.
- Combination slot/square-drive neutral ground and cover screws let you use either standard flat blade screwdriver or square-head driver for reduced slippage and improved torque.
- Improved bus and interior assembly is among the most rugged in the industry.
- Three ground bar mounting locations (left, right, bottom) let you pick the easiest spot to wire.
- Tangential main service knockouts eliminate the need for costly service conduit offset, simplifying and speeding installation.
- Complete load center rotates for top or bottom feed to meet job site requirements and reduces service cable waste.

SKU: 780012
Manufacturer: Schneider Electric
Manufacturer Part #: HOM816M200
