SWITCH RECEPTACLE GFCI 15A IVORYCall for PriceQuantity Available: 1
Call for Price
|

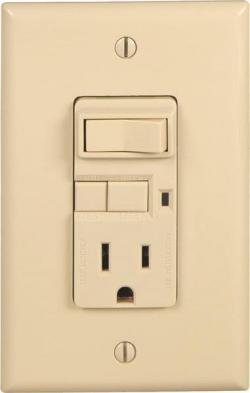

Compact Design Single Gang Combination Switch/GFCI-Protected Receptacle. Switch Handles Motor Loads Of Up To 12 Amps. Mid-Size Wallplate. Color-Matched And Recessed Test And Reset Buttons. Large Indicator Light To Show Tripped Or End Of Life Condition. Durable Chemical And Impact-Resistant Thermoplastic Construction. Built-In Wire Stripper. 8 Separate Backwiring Holes That Accept Up To Number 10 AWG Stranded Or Solid Wire For Maximum Flexibility. Longer, Wider Bridged Strap Provides 40 Percent More Contact Area With Wallboard. Terminal Screws Are Backed Out, Staked, And Ready To Wire. Captive Mounting Screws Reduce Installation Time. 15 Amp At Face, 20 Amp Feed-Through. NEMA 5-15 Switch 1800 Watts At 120 Volts, 60Hz AC Only.
- Combination Switch & Receptacle
- 2 Pole/3 Wire - Grounding
- Single Gang
- Color : Ivory
- Shock Sentry Lock-Out Function Protects From Miswired Line-Load Connections And GFCI Circuitry Damage
- Combination Switch/GFCI Model Also Complies With UL20 And Features A 15A 120 VAC Switch For Motor Loads Of Up To 12 Full-Load Amps
- Large Visual Indicator Light Provides Quick Visual Reference Of A Tripped Or "End Of Life" Condition
- Longer, Wider "Bridged" Strap Provides 40% More Contact Area With Wallboard, Virtually Eliminating Floating Installations
- Mid-Size Wallplate Included
- 0.047 In Thick Steel Strap, Zinc-Plated, 0.030 In Thick Brass Line Contacts, No 8-32 Steel, Brass Plated; Neutral Screw Nickel Plated, Ground Screw Green Terminal And Ground Screws,0.070 In Thick Steel Terminal Clamps
SKU: 765811
Manufacturer: COOPER WIRING DEVICES
Manufacturer Part #: VGFS15V-MSP
