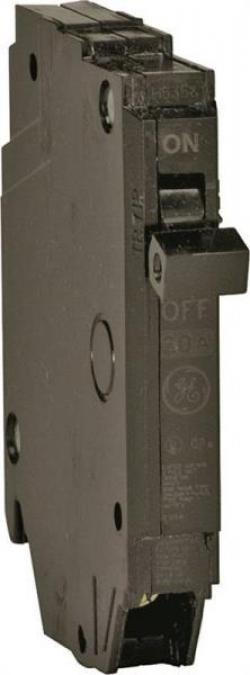

THQP115 GE SP 1/2IN 15AMP BRKR Call for Price  Quantity Available: 2   Call for Price

Copper-to-copper connections, calibrated for optimum trip performance, heat resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2" per pole. UL Listed, HACR rated. 15 and 20 amp SWD, switching duty rated, suitable for 120 volt fluorescent lighting loads. 15 to 25 amp #14 - 8 Cu or #12 - 8 Al AWG wire, 30 to 50 amp #8 - 4 Cu or #8 - 2 Al AWG wire. 3-9/32" height x 1/2" width x 2-3/8" depth. 120/240 volt; 10,000 AIR.

- Plug-In - Single Pole
- Type THQP
- Factory Installed Lugs
- Amp Rating : 15
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
- Calibration screw is cemented to prevent shifting
- Case made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position

SKU: 76554141
Manufacturer:
Manufacturer Part #: THQP115
