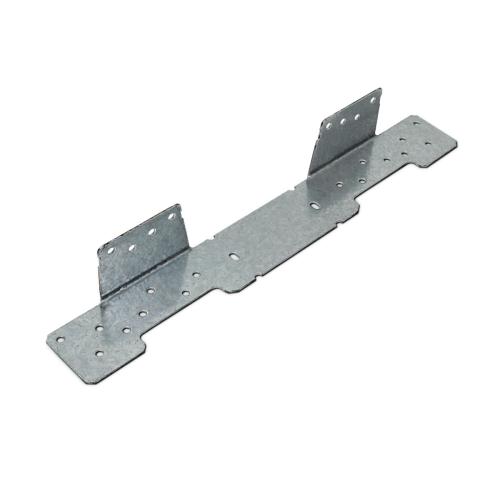

LSCZ LSC 18-Gauge ZMAX Galvanized Adjustable Stringer Connector
- Replaces additional framing and toe-nailing
- Suitable for most installations on nominal 2x10 or 2x12 header/rim board
- May be installed flush with the top of the carrying member or lower on the face
- Interchangeable for left or right applications
- Easy installation with Simpson Strong Tie nails or Strong Drive screws
Description

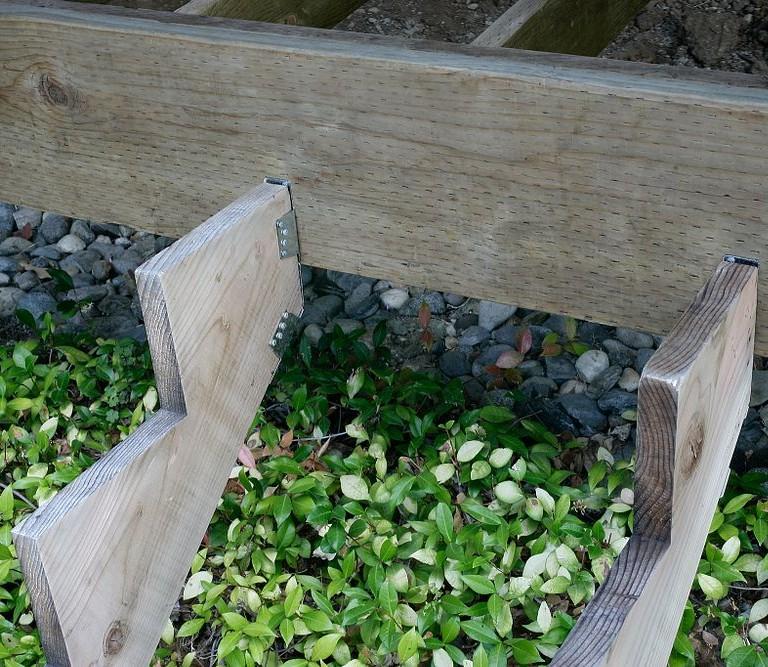

The Simpson Strong Tie LSC adjustable stair stringer connector offers a versatile, concealed connection between the stair stringer and the carrying header or rim joist while replacing costly framing. Field slopeable to all common stair stringer pitches, the LSC connector is suitable for either solid or notched stringers. The LSC replaces additional framing and toe nailing and is interchangeable for left or right applications.
Not only do angles and structural connectors make assemblies stronger, they also help create straighter and more consistent framing layouts. Simpson Strong Tie produces a wide variety of connectors in multiple sizes and thicknesses to meet both light duty and structural load path requirements. Many models can be bent or skewed in the field to match job specific conditions. For outdoor projects or areas where moisture is present, the ZMAX zinc coated finish provides essential protection against corrosion. The ?Z? in the model number identifies this upgraded coating level..
Warranty: Limited warranty available at https://www.strongtie.com/information/limited-warranties.
Specifications
UNSPSC Code
7073922731
Weight
0.3lb
Brand
Simpson Strong-Tie
Category
Connectors
